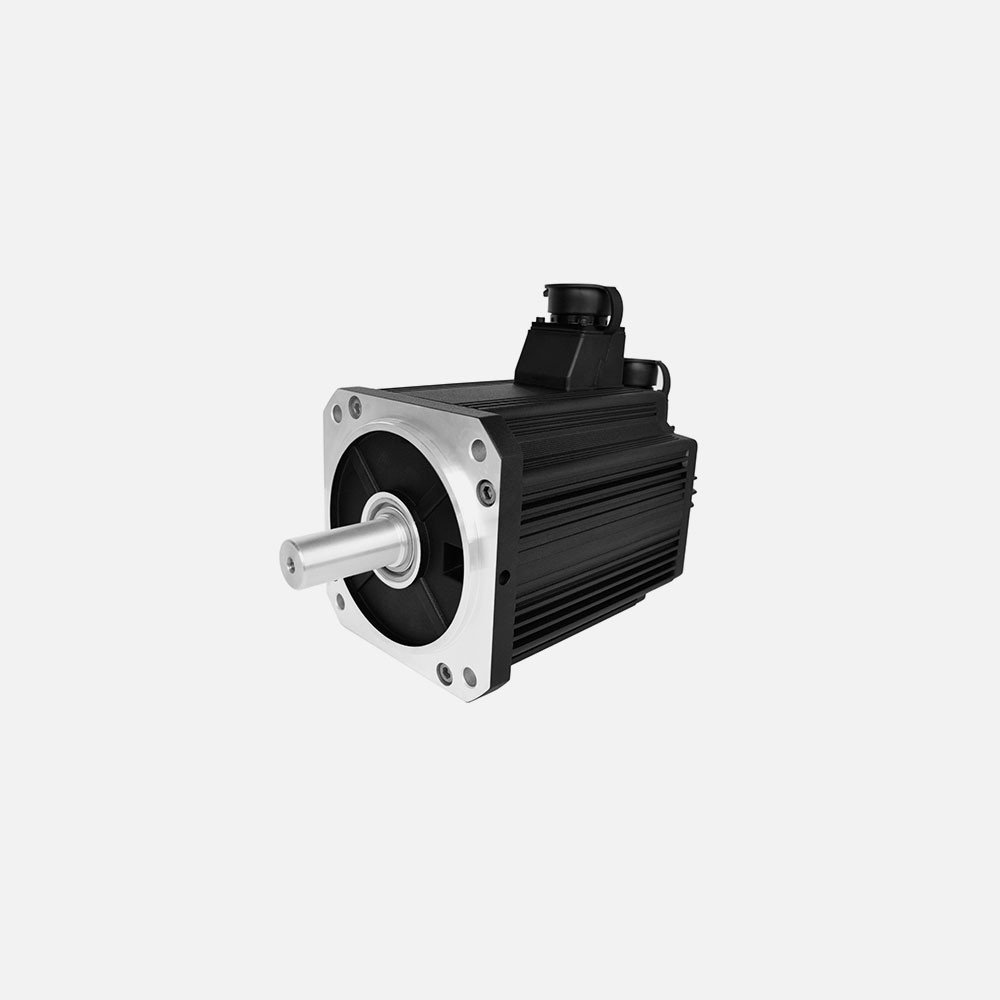

130S Series (130mm)
| 性能数据 |
| 型号 | 极对数 | 额定电压 | 额定功率 | 额定力矩 | 额定转速 | 最大力矩 | 额定电流 | 最大电流 | 扭矩常数 |
| Units | / | VDC/VAC | W | N.m | rpm | N.m | A | A | N.m/A |
| 130S04025A3EMRD | 4P | 311/220 | 1000 | 4 | 2500 | 12 | 4 | 12 | 1 |
| 130S05020A3EMRD | 4P | 311/220 | 1000 | 5 | 2000 | 15 | 4.2 | 12 | 1.19 |
| 130S07725A3EMRD | 4P | 311/220 | 2000 | 7.7 | 2500 | 22 | 7.5 | 17.7 | 1.03 |
| 130S10025A3EMRD | 4P | 311/220 | 2600 | 10 | 2500 | 30 | 10 | 30 | 1 |
| 130S15025A3EMRD | 4P | 311/220 | 3800 | 15 | 2500 | 45 | 13.5 | 40.5 | 1.58 |
| 型号 | 转子惯量 | 反电势常数 | 绝缘耐压 | 防护品级 | 编码器类型 | 运行情形 | 重量 | 长度 |
| Units | Kg*cm? | V/Krpm | / | / | / | / | Kg | mm |
| 130S04025A3EMRD | 10.5 | 72 | F | IP64 | 2500ppr incremental encoder | -20℃ to 40℃ humidity＜90% | 7.7 | 145mm |
| 130S05020A3EMRD | 12 | 79 | F | IP64 | 8.2 | 159m | ||
| 130S07725A3EMRD | 15.3 | 67 | F | IP64 | 10 | 179mm | ||
| 130S10025A3EMRD | 23.4 | 72 | F | IP64 | 11.5 | 199mm | ||
| 130S15025A3EMRD | 29.1 | 67 | F | IP64 | 14.4 | 219mm |
| 轮廓图 |
